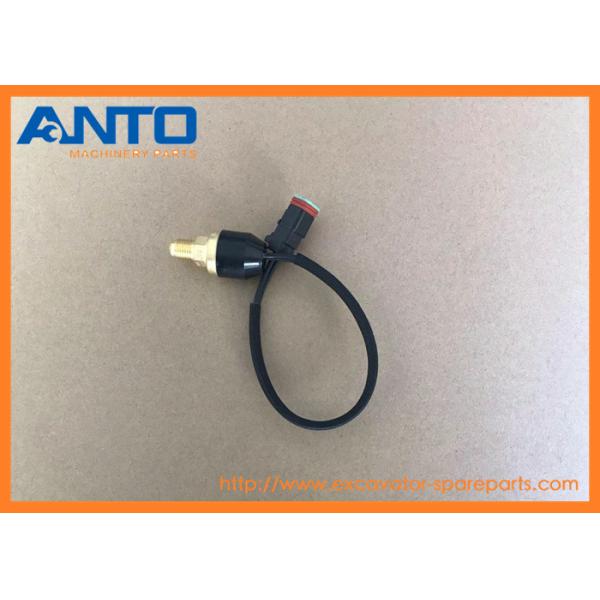

• 3095768 309-5768 Pressure Switch Excavator Electric Parts Fitting For 311C 311D LRR 312D

• Specifiion

Appliion	C A T excavator electric parts
Name	Pressure switch
Parts No	3095768 309-5768
Model	311C 311D LRR 312D 312D L 312D2 312D2 GC 312D2 L 313D 313D2 313D2 LGP 314C 314D CR 314D LCR 315C 315D L 318D L 318D2 L 319D 319D L 319D LN
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Function

1.Threshold-Based Switching
Pre-calibrated to act at specific pressure levels (e.g., minimum operating pressure, maximum safe pressure), the switch converts pressure signals into electrical signals. When the detected pressure reaches or exceeds (or drops below) the preset threshold, it activates or deactivates an electrical circuit.

2.Coordination with Control Systems
The switch integrates with the equipment’s electronic control unit (ECU) or other safety systems. For example, in erpillar engines or heavy machinery, it may work with the ECU to adjust operations—such as reducing engine power if lubriion pressure is too low—to prevent astrophic failure.

• Applicable models

EXCAVATOR 311C 311D LRR 312D 312D L 312D2 312D2 GC 312D2 L 313D 313D2 313D2 LGP 314C 314D CR 314D LCR 315C 315D L 318D L 318D2 L 319D 319D L 319D LN

• More switch parts supplied to C A T machine

2351790 SWITCH-TEMPERATURE

3054, 3054C, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 LGP, 318D2 L, 414E, 416C, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 426C, 428C, 428D, 428E, 428F, 430D, 430E, 430F, 432D, 432E, 432F, 43...

9X8124 SWITCH AS-MAGNETIC

311, 311B, 3126B, 312B, 312C, 312C L, 313B, 314C, 315, 315B, 315B FM L, 315C, 317B LN, 318B, 318C, 319C, 320 L, 3208, 320B, 320B FM LL, 320B L, 320C, 320C FM, 320N, 321B, 322, 322 FM L, 325, 325 L, 32...

2130677 SWITCH AS-LIQUID LEVEL

1090, 1190, 1190T, 120M 2, 1290T, 1390, 2290, 2384C, 2390, 2391, 2484C, 2491, 2590, 2864C, 311D LRR, 3126B, 312B L, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313...

2666210 SWITCH-PRESSURE

311C, 312, 312C, 312C L, 314C, 318B, 318C, 319C, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN

5I8005 SWITCH-PRESSURE

311, 311B, 312, 312B, 312B L, 312C, 315, 315B, 315B L, 315C, 317B LN, 318B, 320, 320 L, 320B, 320C, 321B

1300270 SWITCH AS-PRESSURE

307D, 311B, 311D LRR, 311F LRR, 312B, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314E CR, 314E LCR, 315C, 315D L, 318B, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 32...

2833074 SWITCH AS-TOGGLE

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2 L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, ...

1636711 SWITCH AS-TOGGLE

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2 L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, ...

1673466 SWITCH AS-PRESSURE

311C, 312C, 312C L, 312D, 314C, 315C, 315D L, 318C, 319C, 319D, 320C, 320C FM, 320C L, 320D, 320D L, 320D LRR, 321C, 321D LCR, 322C, 322C FM, 323D L, 323D LN, 324D, 324D FM, 324D L, 324D LN, 325C, 325...

3095769 SWITCH AS-PRESSURE

311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D, 313D2, 314C, 314D CR, 314D LCR, 315C, 315D L

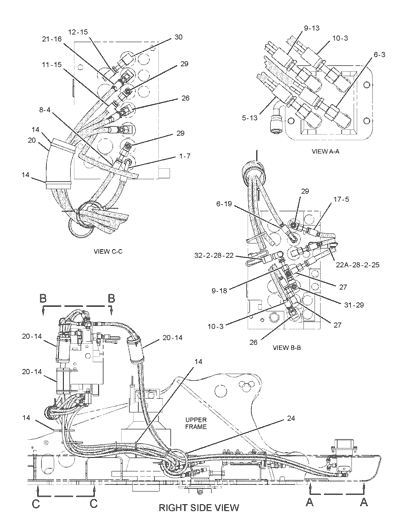

• alog part list

Pos.	Part No	Qty	Parts name	Comments
1	087-5777 I	[1]	HOSE AS
2	4I-3941	[2]	FITTING AS
3	4I-3988 I	[3]	HOSE AS
4	4I-5933 I	[1]	HOSE AS
5	4I-9521	[6]	BAND-MARKER (RED, L1)
6	4I-9522	[6]	BAND-MARKER (YELLOW, L2)
7	4I-9523	[2]	BAND-MARKER (BLUE, L3)
8	4I-9524	[2]	BAND-MARKER (BROWN, L4)
9	4I-9525	[6]	BAND-MARKER (ORANGE, R1)
10	4I-9526	[6]	BAND-MARKER (WHITE, R2)
11	4I-9527	[2]	BAND-MARKER (GREEN, R3)
12	4I-9528	[2]	BAND-MARKER (PURPLE, R4)
13	7I-8252 I	[2]	HOSE AS
14	7K-1181	[17]	STRAP-CABLE
15	7Y-4199 I	[2]	HOSE AS
16	4I-1037 I	[1]	HOSE AS
17	104-8973 I	[1]	HOSE AS
18	108-7360 I	[1]	HOSE AS
19	363-6187 I	[1]	HOSE AS
20	115-8645	[4]	GUARD
21	133-5813	[2]	BAND-MARKER (GRAY, P)
22	309-5768	[1]	SWITCH AS-PRESSURE (TRAVEL)
22A.	309-5768	[1]	SWITCH AS-PRESSURE (IMPLEMENT, SWING)
			(EACH SWITCH AS INCLUDES)
	9X-3402	[2]	SOCKET-CONNECTOR (16-GA TO 18-GA)
			-OR-
	126-1768	[2]	SOCKET-CONNECTOR (14-GA TO 16-GA)
	331-4226	[1]	KIT-CONNECTING PLUG (2-PIN)
			(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
24	292-7180	[1]	GROMMET
25	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
26	148-8353	[4]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9001	[1]	ELBOW
27	148-8378	[3]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
28	148-8407	[2]	PLUG AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	9S-4191	[1]	PLUG (9/16-18-THD)
29	148-8435	[5]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
30	150-3036	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-1905	[1]	ELBOW
31	150-4027	[1]	TEE AS
	3E-2310	[1]	TEE
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
32	148-8338	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-0075	[1]	CONNECTOR
	I		REFER TO HYDRAULIC INFORMATION SYSTEM

• Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
