• 1912683 191-2683 Sun Gear Excavator Final Drive For 320C 320C FM 320D 320D FM 320D FM RR

• Specifiion

Appliion	C A T excavator final drive
Name	Sun gear
Parts No	1912683 191-2683
Model	320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Function

1.Power transmission: The sun gear is loed at the center of the planetary gear system. It is usually connected to the power source, such as a hydraulic motor or engine shaft. When the power source rotates, the sun gear rotates accordingly and meshes with the planetary gears to transmit power to the planetary gears, enabling the planetary gears to rotate. Then, through the meshing between the planetary gears and the ring gear, the power is further transmitted to other components of the drive system, thus realizing the power output of the entire machine.

2.Speed and torque conversion: By cooperating with the planetary gears and the ring gear, different transmission ratios can be achieved. When the sun gear is used as the input end, by controlling the motion states of the planetary gears and the ring gear, different output speeds and torques can be obtained.

• Applicable models

EXCAVATOR 320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
MOBILE HYD POWER UNIT 325D 329D L

• More gear parts supplied to C A T machine

1912684 GEAR-PLANETARY

320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS

1695592 GEAR-PLANETARY

320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32...

1695593 GEAR-PLANETARY

320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32...

1695594 GEAR-RING

322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L

1912675 GEAR-PLANETARY

322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L

7Y0663 GEAR-PLANET

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0676 GEAR-PLANET

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0659 GEAR-PLANET

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0639 GEAR-SUN

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0673 GEAR-RING

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

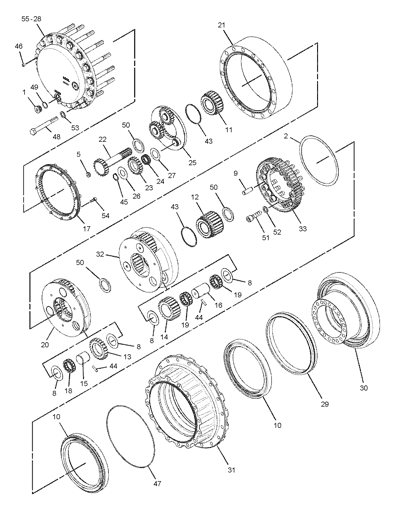

• alog part list

Pos.	Part No	Qty	Parts name	Comments
1	3E-2338	[2]	PLUG-PIPE
2	267-6863 BJ	[1]	SHIM (0.75-MM THK)
	7Y-0752 BJ	[1]	SHIM (0.8-MM THK)
	267-6864 BJ	[1]	SHIM (0.85-MM THK)
	267-6865 BJ	[1]	SHIM (0.9-MM THK)
	267-6866 BJ	[1]	SHIM (0.95-MM THK)
	7Y-0753 BJ	[1]	SHIM (1-MM THK)
	267-6867 BJ	[1]	SHIM (1.2-MM THK)
	267-6868 BJ	[1]	SHIM (1.4-MM THK)
	7Y-0754 BJ	[1]	SHIM (1.6-MM THK)
	267-6869 BJ	[1]	SHIM (1.8-MM THK)
	267-6870 BJ	[1]	SHIM (2-MM THK)
	267-6871 BJ	[1]	SHIM (2.3-MM THK)
5	094-0578 B	[1]	PLATE (8-MM THK)
	094-0579 B	[1]	PLATE (9-MM THK)
	094-0580 B	[1]	PLATE (10-MM THK)
8	094-1528	[12]	WASHER (53X84X1-MM THK)
9	114-1540 J	[4]	PIN-DOWEL
10	168-8452 J	[2]	BALL BEARING
11	169-5589	[1]	GEAR-SUN (24-TEETH)
12	169-5590	[1]	GEAR-SUN (24-TEETH)
13	169-5592	[3]	GEAR-PLANETARY (23-TEETH)
14	169-5593	[3]	GEAR-PLANETARY (23-TEETH)
15	169-5601	[3]	SHAFT-PLANETARY
16	169-5602	[3]	SHAFT-PLANETARY
17	171-9387	[1]	GEAR-RING (64-TEETH)
18	191-2569	[3]	BEARING AS (CAGED ROLLER)
19	191-2570	[6]	BEARING AS (CAGED ROLLER)
20	191-2571	[1]	CARRIER-PLANETARY
21	191-2676	[1]	GEAR-RING (72-TEETH)
22	191-2683	[1]	GEAR-SUN (20-TEETH)
23	191-2684	[3]	GEAR-PLANETARY (21-TEETH)
24	191-2685	[3]	BEARING AS
25	191-2686	[1]	CARRIER AS
	191-2687	[3]	RACE-BEARING
26	191-2689	[3]	WASHER (34X70X1-MM THK)
27	191-2690	[3]	WASHER (42.3X70X1-MM THK)
28	199-4503	[1]	COVER
29	207-1571 J	[1]	SEAL GP-DUO-CONE
	214-3570	[2]	RING-TORIC
30	267-6797 J	[1]	HOUSING-MOTOR
31	267-6798 J	[1]	HOUSING
32	267-6799	[1]	CARRIER-PLANETARY
33	267-6800 J	[1]	GEAR-COUPLING
43	093-1731	[2]	RING-RETAINING
44	095-0891	[6]	PIN-SPRING
45	096-0433	[3]	RING-RETAINING
46	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
47	171-9298	[1]	SEAL-O-RING
48	179-8733 M	[16]	BOLT (M20X2.5X170-MM)
49	7M-8485	[2]	SEAL-O-RING
50	7Y-0595	[3]	SPACER (58X79.6X6-MM THK)
51	7Y-5217 JM	[16]	BOLT-SOCKET HEAD (M20X2.5X70-MM)
52	8T-3282 J	[16]	WASHER-HARD (22X35X3.5-MM THK)
53	8T-4123	[16]	WASHER (22X35X3.5-MM THK)
54	9X-6032 M	[12]	BOLT-SOCKET HEAD (M10X1.5X30-MM)
55	1U-8846 B		SEALANT-GASKET
			AVAILABLE REPAIR KIT(S):
	267-6818 J	[1]	KIT-FINAL DRIVE BEARING
	B		USE AS REQUIRED
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
