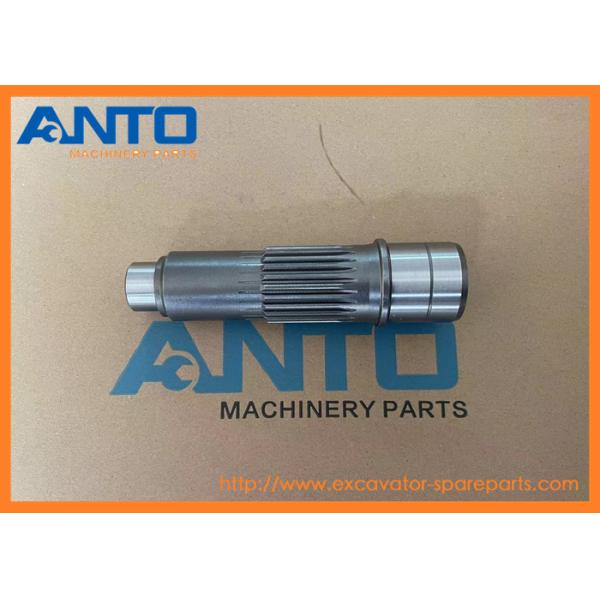

- SA8230-32360 SA823032360 Shaft Excavator Spare Parts Fit For EC135B EC140B
| Name | Shaft |
| Parts No | SA8230-32360 SA823032360 |
| Machine Model | EC135B EC140 EC140B |
| Category | Travel Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
EXCAVATOR EC135B EC140 EC140B Vol.vo.
- More other shaft parts fit for V O L V O machine
| VOE15164296 Shaft |
| L350F |
| |
| VOE15167787 Shaft |
| L110F, L110G, L110H, L120F, L120G, L120H, L350F |
| |
| VOE15164240 Shaft |
| L110F, L110G, L110H, L120F, L120G, L120H, L150F, L150G, L150H, L180F, L180G, L180H, L220F, L220G, L220H, L250G, L250H, L350F |
| |
| VOE14528929 Shaft |
| EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC235C, EC235D, FC2121C, FC2421C |
| |
| VOE14536406 Shaft |
| EW140C, EW160C, EW180C, EW210C, EW230C |
| |
| VOE14528928 Shaft |
| EC120D, EC135B, EC140B, EC140C, EC140D, EC140E, ECR145C, ECR145D, ECR145E, EW140E, EW145B |
| |
| VOE4809366 Shaft |
| ATTACHMENTS |
| |
| VOE14505039 Shaft |
| EC55, EC55B, EC55C, EC60C |
| |
| RM20221115 Shaft |
| OMNI 1A, OMNI IIIA, OMNI IIIE, ULTIMAT 16, ULTIMAT 20, WEDGE-LOCK 10 |
| |
| VOE15167764 Shaft |
| L150F, L150G, L150H, L180F, L180G, L180H |
| |
| VOE15167265 Shaft |
| L110F, L110G, L110H, L120F, L120G, L120H |

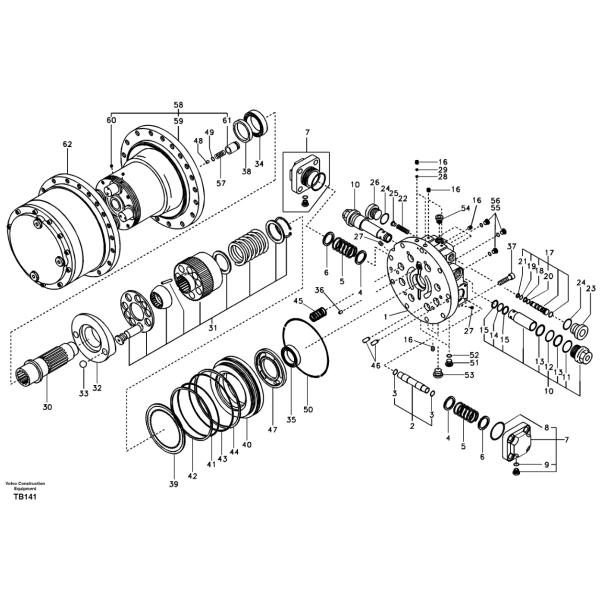

| Pos. | Part No | Qty | Parts name | Comments |
| | VOE14524182 | [1] | Drive unit | |
| 1 | SA8230-33440 | [1] | Plate | |
| 2 | SA8230-34310 | [1] | Plunger | |
| 3 | VOE990557 | [2] | O-ring | |
| 4 | SA8230-34150 | [2] | Seat | |
| 5 | SA8230-34130 | [2] | Spring | |
| 6 | SA8230-34160 | [2] | Seat | |
| 7 | SA8230-34320 | [2] | Cap | |
| 8 | | [1] | O-ring | |
| 9 | | [1] | O-ring | |
| 10 | SA8230-34330 | [2] | Valve | |
| 11 | SA8230-32630 | [1] | O-ring | |
| 12 | VOE983510 | [1] | O-ring | |
| 13 | SA9566-30210 | [2] | Back-up ring | |
| 14 | VOE983506 | [1] | O-ring | |
| 15 | VOE14625243 | [2] | Ring | |
| 16 | SA8230-32300 | [11] | Plug | |
| 17 | SA8230-32380 | [1] | Valve | |
| 18 | VOE983493 | [1] | O-ring | |
| 19 | VOE990551 | [1] | O-ring | |
| 20 | SA9566-10060 | [1] | Back-up ring | |
| 21 | SA9566-10050 | [1] | Back-up ring | |
| 22 | SA8230-33400 | [1] | Spring | |
| 23 | SA8230-34050 | [1] | Plug | |
| 24 | VOE990557 | [2] | O-ring | |
| 25 | SA8230-33430 | [1] | Guide | |
| 26 | SA8230-33940 | [1] | Plug | |
| 27 | SA8230-34220 | [2] | Orifice | |
| 28 | SA8230-34230 | [2] | Orifice | |
| 29 | SA8230-32650 | [2] | Orifice | |
| 30 | SA8230-32360 | [1] | Shaft | |
| 31 | SA8230-32390 | [1] | Block | |
| 32 | SA8230-33410 | [1] | Plate | |
| 33 | SA8230-34020 | [2] | Ball | |
| 34 | SA8230-33980 | [1] | Ball bearing | |
| 35 | SA8230-33970 | [1] | Ball bearing | |
| 36 | SA8230-32410 | [1] | Pin | |
| 37 | SA8230-33230 | [9] | Bolt | |
| 38 | SA8230-32420 | [1] | Seal | |
| 39 | SA8230-34040 | [1] | Plate | |
| 40 | SA8230-34030 | [1] | Piston | |
| 41 | VOE960252 | [1] | O-ring | |
| 42 | SA9566-41800 | [1] | Back-up ring | |
| 43 | SA8230-33960 | [1] | O-ring | |
| 44 | SA8230-33950 | [1] | Ring | |
| 45 | SA8230-32330 | [8] | Spring | |
| 46 | SA8230-32320 | [4] | Pin | |
| 47 | SA8230-33930 | [1] | Plate | |
| 48 | SA8230-34210 | [1] | Orifice | |
| 49 | VOE983497 | [4] | O-ring | |
| 50 | SA8230-34070 | [1] | O-ring | |
| 51 | SA8230-34050 | [2] | Plug | |
| 52 | VOE990557 | [2] | O-ring | |
| 53 | SA8230-32700 | [2] | Plug | |
| 54 | SA8230-32690 | [1] | Plug | |
| 55 | SA8230-32350 | [3] | Plug | |
| 56 | VOE983502 | [3] | O-ring | |
| 57 | SA8230-33890 | [2] | Spring | |
| 58 | SA8230-33550 | [1] | Holder | |
| 59 | SA8230-32600 | [1] | Holder | |
| 60 | SA8230-33390 | [2] | Plug | |
| 61 | SA8230-34090 | [2] | Piston | |
| 62 | SA8230-33470 | [1] | Travel gearbox | |
| 900 | SA8230-33460 | [1] | Plate | INCL.1,2,16,17 |
| 100 | SA8230-32400 | [1] | Sealing Kit | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
